A10 Cruiser Mk.II

Cruiser tank (1938) United Kingdom - 175 built

The cruiser tank concept

The main concept of a cruiser tank, as defined by the War Office in 1936, could be traced back to the end of the Great War, when the first Mark A "Whippets" were committed in operations. Their main goal was to exploit breakthroughs and create havoc behind the enemy lines, disrupting lines of communication, destroying depots, artillery positions, and preventing reinforcements to arrive. The cruisers were designed to bypass enemy strongpoints and spearhead the advance of a motorized division. This concept required a relatively light tank, fast, well-armed, possibly with a good communication set. At the same time, Sir John Carden, then chief engineer of Vickers, had drawn plans of a "reasonably cheap tank" which could fill the army requirement during these low budgetary years, to replace the Mediums in use. The A9E1 was finished in 1936 as a prototype, and demonstrated to the War Office.

The Cruiser Mark I designed by John Carden

The Cruiser Mark I was at its origins a "cheap" medium tank, comparable to the contemporary Infantry tank Matilda Mark I. The A9E1 borrowed as many featured from the previous light tank Mark III, parts and equipment commercially available, to reduce the conception costs. This helped to lower the unit price and brought a formal approval and a 125 order from the War Office, as the Cruiser Mark I, in 1937. With a crew of 6 in a cramped space, the Mark I literally bristled with armament, the two front turrets each bearing a .303 (7.62 mm) Vickers machine-guns, while the main turret had a third coaxial one, coupled a QF 2-pounder (40 mm/1.57 in). This gun had the punch required against armoured tanks and light tanks. The tradeoffs were an entirely riveted hull, thin armor and the unique suspension system, combining two bogies (coil springs), each with four pairs of small and two pairs of larger road wheels. This was intended to procure better ground pressure and smoother ride with the minimal amount of parts, and easier and cheaper maintenance. This system was seen as an interim before the new Christie system could be adapted. Both Harland and Wolff and Vickers delivered the order until late 1940. The first were operational with the RTR in January 1939.

The A10 Cruiser Mark II

Although fast (24.9 mph/40 km/h), the first Cruiser lacked protection, with just 14 mm (0.55 in) on the turret mantlet and nose glacis. The triple turret system made it complicated to built, and this feature, once in favor in the interwar, was seen as obsolete by 1940. The A10 was studied by John Carden at the same time in 1934, following a specification for a 1 inch (25.4 mm) armoured tank, while its speed could be slightly lower. The A9 plans were subsequently modified into the A10. Both were strikingly similar, but the two frontal turrets were eliminated and replaced by a lighter armoured box, armed with twin .303 (7.62 mm) machine guns. The biggest change was the armor, raised up to 30 mm (1.18 in) on the nose and mantlet, and 14 mm (0.55 in) elsewhere, while the bottom, rear plate and rooftop were just 6 mm (0.24 in) thick. The engine was unchanged (AEC Type A179 6-cylinder petrol, 150 hp), resulting in an added weight of 2.3 tons, and a top speed reduced in effect to just 26 km/h (16.1 mph), compared to the 25 mph/40 km/h of the Mk.I, barely more than infantry pace on rough terrain. A total of 175 were delivered, from July to December 1939, by the Birmingham Railway Carriage and Wagon Company, Metropolitan-Cammell and Vickers, entering service early in 1940.

Evolution and variants

The original A10 Mark II was armed with two Vickers .303 (7.62 mm) liquid-cooled machine-guns. They were reliable, but cumbersome and inaccurate. Due to the suppression of the turrets from the Mark I design, more ammunition was carried (3000 rounds vs 4050 in the Mark II). Army designation was Tank, Cruiser A10 Mk.I. Later on, Besa machine-guns were adopted. Lighter, more compact and accurate, they helped to distinguish the new Cruiser Mark IIA (army designation Tank, Cruiser A10 Mk.II), which also received an armoured radio housing. The main variant of the type was the Mark IIA CS (for Close Support, 30 produced), rearmed with a 3.7 in (94 mm) howitzer, derived from a field gun, to provide smoke cover for the infantry (40 smoke rounds were carried) and a few HE rounds to deal with fortified positions. The Mark II was too slow to be effective as a true cruiser tank. The next Mark III, with Christie suspension, was judged superior. However, the sturdy Mark II chassis was chosen as a basis for the new Infantry Tank, the Valentine, the most produced British tank of the war.

The Cruiser Mk. II in action

The Mark II didn't turn out to be a successful British tank design. Its shortcomings were rooted in a series of cost-savings and peacetime compromises. To distinguish the Mark II from the Mark I, the latter was classed as a "heavy cruiser", to underline its better protection, but much slower speed. But it was certainly not protected enough to serve as an infantry tank. In the upcoming Battle of France, were the first 21 delivered were committed with the 1st armoured Division, the Mark II seems to have performed poorly. This was due to its very slow speed off road and torsion problems with its tracks, which proved too fragile in operations. Later on, much of the production was sent in North Africa, to defend Egypt against a belligerent Italy. Their first commitment came when repelling the Italian invasion of December 1940, and fought their way into Libya and Abyssinia during Operation Compass, where they performed well, due to a dry and flat terrain, against Italian tanks which were not well-armed nor better protected. Later, in Greece, 60 Mark IIAs were sent with the 3rd RTR. There, the QF 2-pounder (40 mm/1.57 in) was found deadly against German reconnaissance armoured cars columns, and light tanks like the Panzer I and II. But it was unable to sustain the fire of the German main AT gun, the Pak-36, nor from the early Panzer III's 37 mm (1.46 in), and most were lost, disabled or abandoned in April 1941. Reliability often proved an issue, as well as crew safety, due the narrowness of the escape hatches.
A10 Cruiser Mark II specifications
Dimensions 5.5 x 2.6 x 2.5 m (18ft4/8ft4/8ft8)
Total weight, battle ready 14,3 tons
Crew 5 (commander, driver, gunner, loader, hull gunner)
Propulsion AEC Type A179 6-cylinder petrol engine, 150 hp
Suspensions 2x triple wheels + coil springs
Speed road/off road 16/8 mph (26/12 km/h)
Range (road) 100 mi (160 km)
Armament Main : 1 x QF Vickers 2-pdr (40 mm/1.57 in)
Secondary: 2 x 0.303 (7.62 mm) Vickers/Besa machine-guns
Armor From 6 to 30 mm (0.24-1.18 in)
Total production 175 between 1938-1940

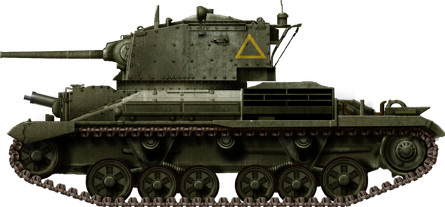

A10 cruiser II
A10 Cruiser Mk.II in early configuration, with three .303 (7.62 mm) Vickers liquid-cooled machine-guns. It was part of the 21 delivered which were later sent with the British Expeditionary Force (BEF) to fight in France.

A10 cruiser Mark IIA CS
Cruiser Mk.IIA CS (Close Support) with the BEF, 1st Armoured Division, France, May 1940.

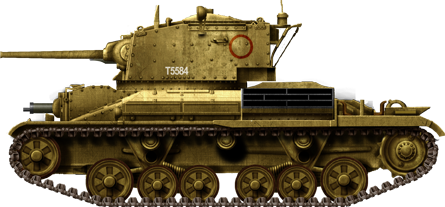

A10 December 1940
A Cruiser II defending Tobruk, during the aftermath of the Italian invasion in December 1940.

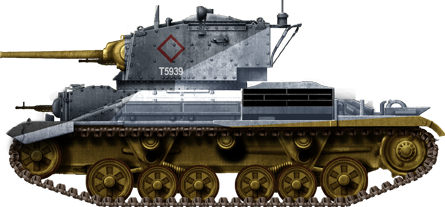

Operation Compass
A Cruiser Mk.IIA (Besa machine-guns) during Operation Compass, the British counter-offensive against Italian forces in Libya, January 1941. The last surviving Mark IIAs were phased out by late 1941.

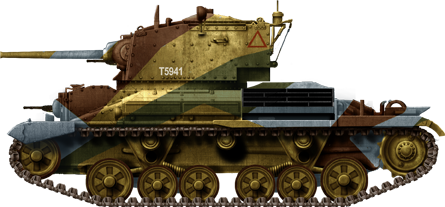

A10 Greece 1941
A10 Cruiser Mk.IIA in Greece, 3rd RTR, April 1941. 60 were shipped from North Africa to Southern Greece to support the Greek defenders against much superior German Forces.

A disabled Mark IIA of the Third Royal Tank Regiment (RTR) in Greece, April 1941 (Bundesarchiv). Although their greater protection was appreciated, compared to the Mark I, and the 2-pdr (40 mm/1.57 in) gun proved deadly against many German light vehicles. Their tracks were narrow and fragile, prone to twisting when maneuvering tightly. This was as a major weakness, as their poor off-road speed and notorious mechanical unreliability. In fact 90% were lost due to breakdowns as opposed to enemy actions during this campaign.
